RMU005

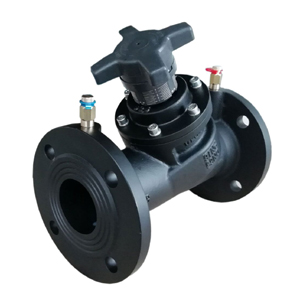

Static Double Regulating Valve Flanged ends Ductile Iron PN16/PN25
REEP brand RMU005 model BS7350 Static Double Regulating valve, pressure rating PN 16/25,Precision balancing valves for hydronic systems.
Nominal diameter: DN 40 -500
Pressure rating: PN 16/25
Max. 120 °C
Face To Face: BS7350
Material specification
Body and bonnet/Disc: DI(400-15(GGG40) (EN and/or (DIN)))
Sealing: EPDM
Handwheel(DN40-DN250): NYLON
Handwheel(DN300-DN500):AL
Test points: Brass
Pressure and temperature range
Size water
DN40 thru DN500 16 bar – 120 °C
DN40 thru DN400 25 bar – 120 °C
