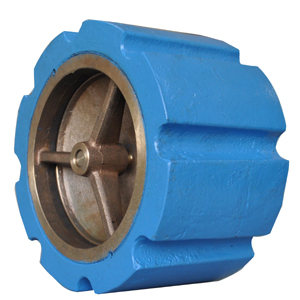

RCV020
Check Valve Wafer Silent type with Resilient Seated Ductile Iron PN16/PN25
REEP brand RCV020 model wafer silent type check valve has a spring-loaded poppet that allows the valve to close before flow reversal occurs, resulting in a silent, non-slam closure.
Size: DN50-DN350
Pressure Rating: PN16-25
Temperature: Max. 120°C
Face to Face: Short Lay Length to MSS SP-125
Material Specification:
Body: Ductile Iron
Disc & Seat: Stainless Steel, AL-BZ
Seat Ring: EPDM, NBR
Spring: Stainless Steel
Custom made available
