Butterfly Valve Wafer Centric Resilient type PN10 PN16 PN25

RBV157/158/167
Butterfly Valve Wafer Centric Resilient type PN10/PN16/PN25

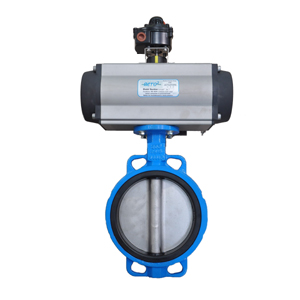

REEP brand RBV157/158/167 model butterfly valve, wafer type centric disc, one piece or two pieces shaft, rubber liner.



Fig. RBV157 (Bonded liner, can be used for maritime systems)

Fig. RBV158 (Replaceable liner without backing)

Fig. RBV167 (Replaceable liner with backing)


Size: DN40-DN1200

Pressure rating: PN10-PN16-PN25

Face To Face: EN558-1 series 20


Material Specification:

Body: Ductile Iron

Disc: Ductile Iron, Stainless Steel, Aluminium Bronze

Liner: EPDM, NBR, FKM, PTFE

Stem: Stainless Steel

O-ring: EPDM, NBR, FKM

Actuator: Manual, Pneumatic, electric actuator

Custom made available
