BS5163 Resilient Seated NRS Flanged ends PN10/PN16

BS5163 Resilient Seated NRS Flanged ends PN10/PN16

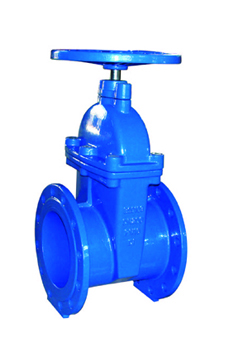

REEP brand RGV001 model BS5163 resilient gate valve, pressure rating PN 10/16, bolted bonnet, non-rising stem,Face to Face according to EN 558-1, 13 series (BS5163).


Nominal diameter: DN 40 - 600

Pressure rating: PN 10 - 16

Temperature range: Max. 120 °C

Face To Face: EN 558-1, 13/(BS5163)

Material Specification

Component/Material/EN and/or (BS)

Body and bonnet/Wedge: DI 500-7

Rubber/Bonnet gasket/O-ring: EPDM

Handwheel/Cap nut: DI

Stem: St.St 420S37

Pressure and temperature range

Size                                water

DN40 thru DN 600      16 bar – 120 °C


• Other materials, pressure rating, flange connection and larger sizes.

• Available with EN 10204.3.1 certificate

• Manual,Pneumatic, electric or hydraulic actuator, see actuator section

• series 157 butterfly valves can be used for maritime systems for media such as (ballast) water,

gases, hydrocarbons and light corrosive media up to a maximum of 16 bar (PN 16 execution).
